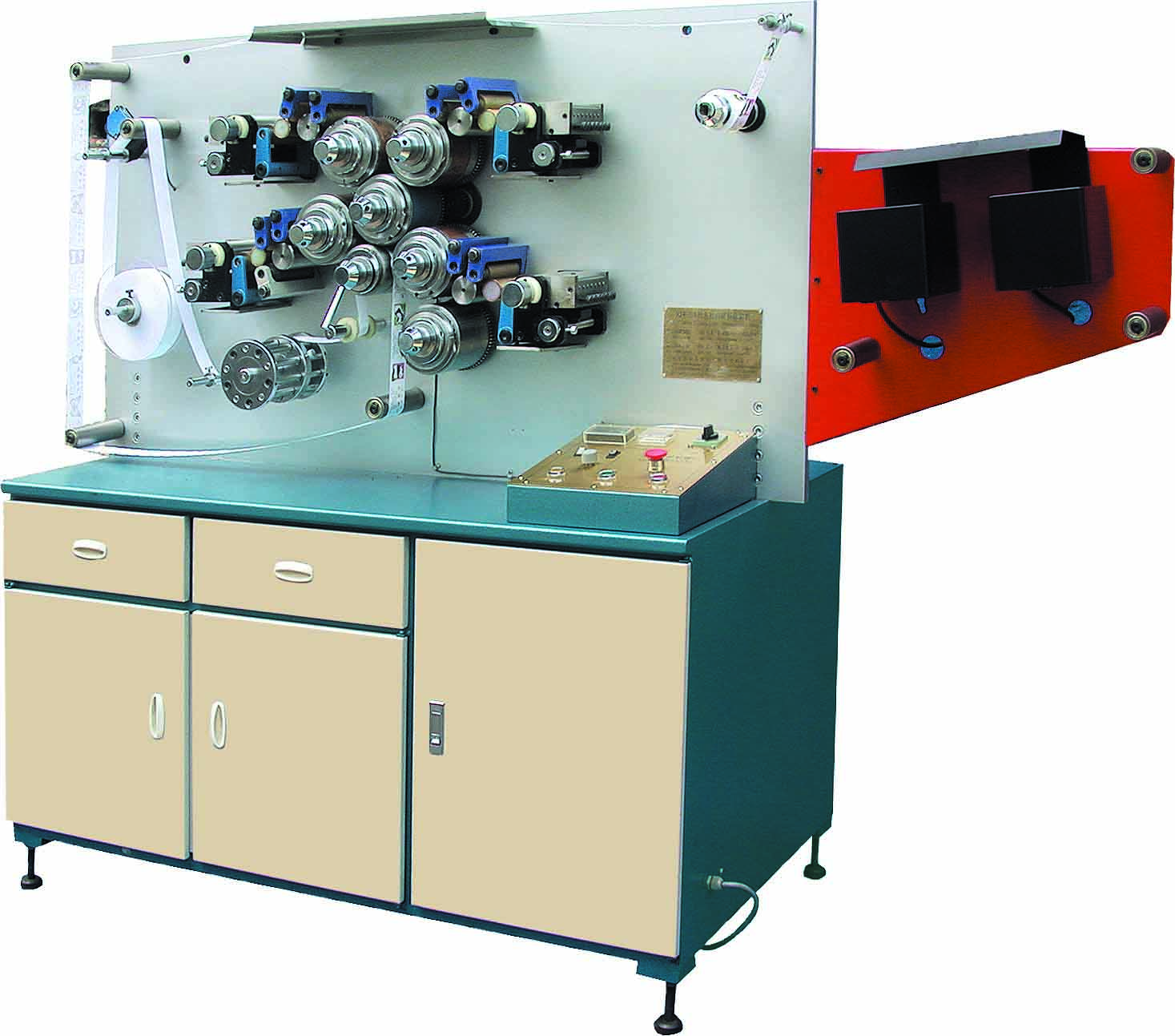

Rotary Label Printing Machine

XH-94/96/99/500/700 Rotary Label Printing Machine
This machine has precise registration, high speed and efficiency, reliable, stable, and easy in operation. There is a wide selection of color-combination for label printing, such as 1+1, 2+1, 3+1, 4+1,4+3,5+2,and6+1,etc. The Rotary Printing Machine operates without any deviation when running at max speed. And the sharpness of color and the accuracy of color registration remain unchanged even printing on elastic materials. lt is suitable for many kinds of printing materials. Such as satin tape, nylon tape, cotton tape, elastic tape, adhesive tape and paper, etc
Specification

Model

XH-96

XH-99

XH-94

XH-500

XH-700

Printing colors

2+0/1+1

3+0/2+1

4+0/3+1

5+0/4+1

4+3/5+2/6+0

Max. Material

width

110mm

110mm

110mm

110mm

110mm

Max. Printing width

100mm

100mm

100mm

100mm

100mm

Max. Printing length

400mm

400mm

400mm

400mm

400mm

Printing speed

0-60m/Min

0-60m/Min

0-60m/Min

0-60m/Min

0-60m/Min

Power

0.81KW

0.81KW

1.16KW

1.7KW

1.7KW

Dimension

(L*W*H)mm

1000*820*1150

1200*820*1600

1520*820*1600

1650*820*1700

1960*820*1800

Weight

700KG

800KG

950KG

1000KG

1200KG
