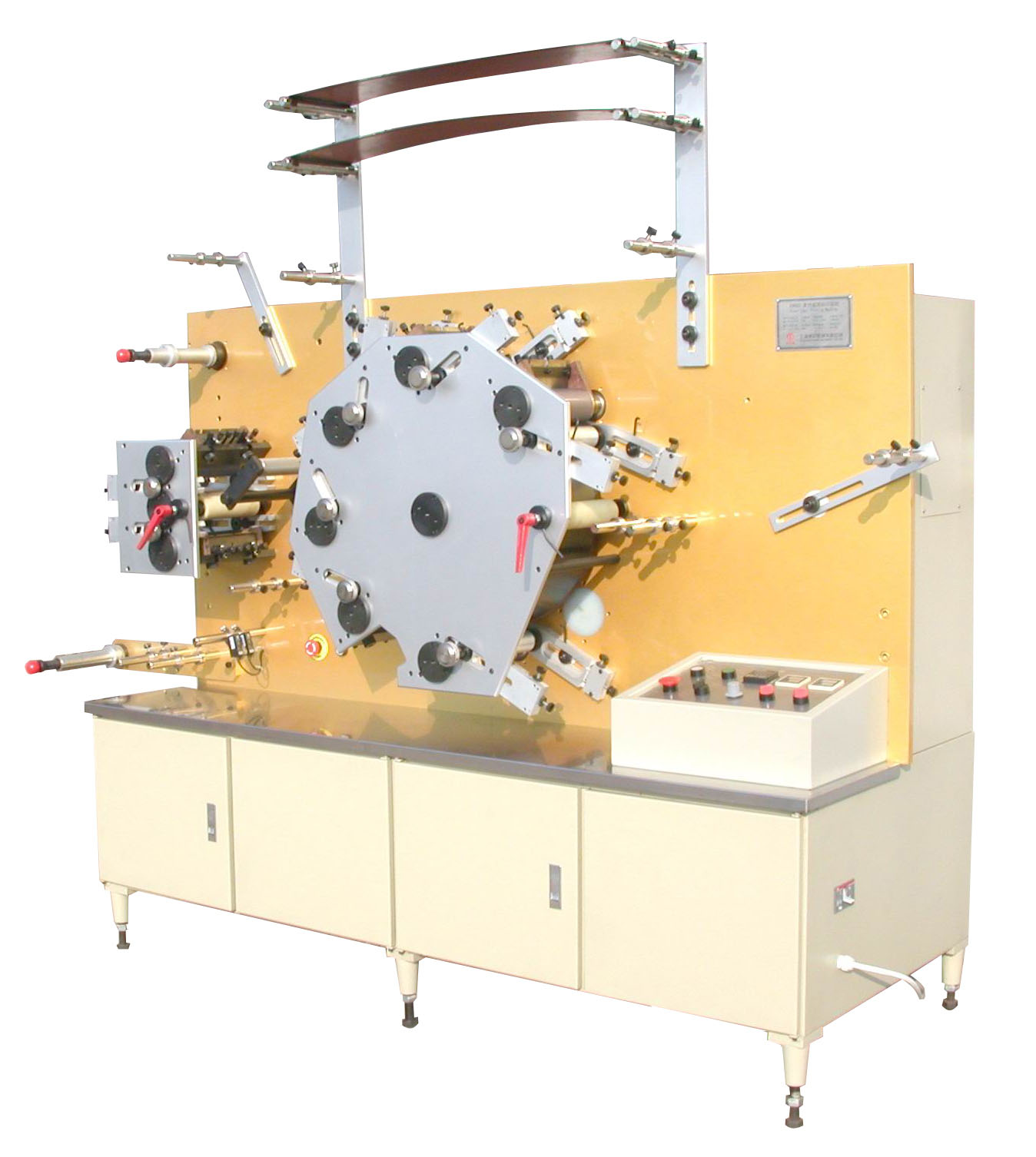

Flexo Label Printing Machine

XHR series Label Printing Machine

This machine’s printing principle is that the ink will be evenly spread-out on the anilox-rollers, then transfers to the printing cylinder, the flexo plate will collect the ink and press directly on the surface of the material, then printed material will go through the internal curing unit, you can achieve a very strong color fastness. Machine is easy to operate, flexible, and consistent, variable label length can be printed via changing different printing cylinder size.

Specification

Model	Front Color	Back Color	Max.Printing Width mm	Printing Length mm	Unwinding diameter mm	Max. Speed m/min	Power KW	Weight KG	Dimension (L*W*H) mm
XHR20	2	0	150	108-400	400	70	3.5	500	1300*750*1800
XHR21	2	1	150	108-400	400	70	3.5	550	1300*750*1800
XHR22	2	2	150	108-400	400	70	3.5	550	1300*750*1800
XHR30	3	0	150	108-400	400	70	4.2	650	1550*750*1850
XHR31	3	1	150	108-400	400	70	4.2	650	1550*750*1850
XHR32	3	2	150	108-400	400	70	4.2	650	1550*750*1850
XHR40	4	0	150	108-400	400	70	4.2	700	1550*750*1850
XHR41	4	1	150	108-400	400	70	4.2	700	1550*750*1850
XHR42	4	2	150	108-400	400	70	4.2	700	1550*750*1850
XHR52	5	2	150	108-400	400	70	4.2	950	1960*800*2000
XHR62	6	2	150	108-400	400	70	4.2	950	1960*800*2000
